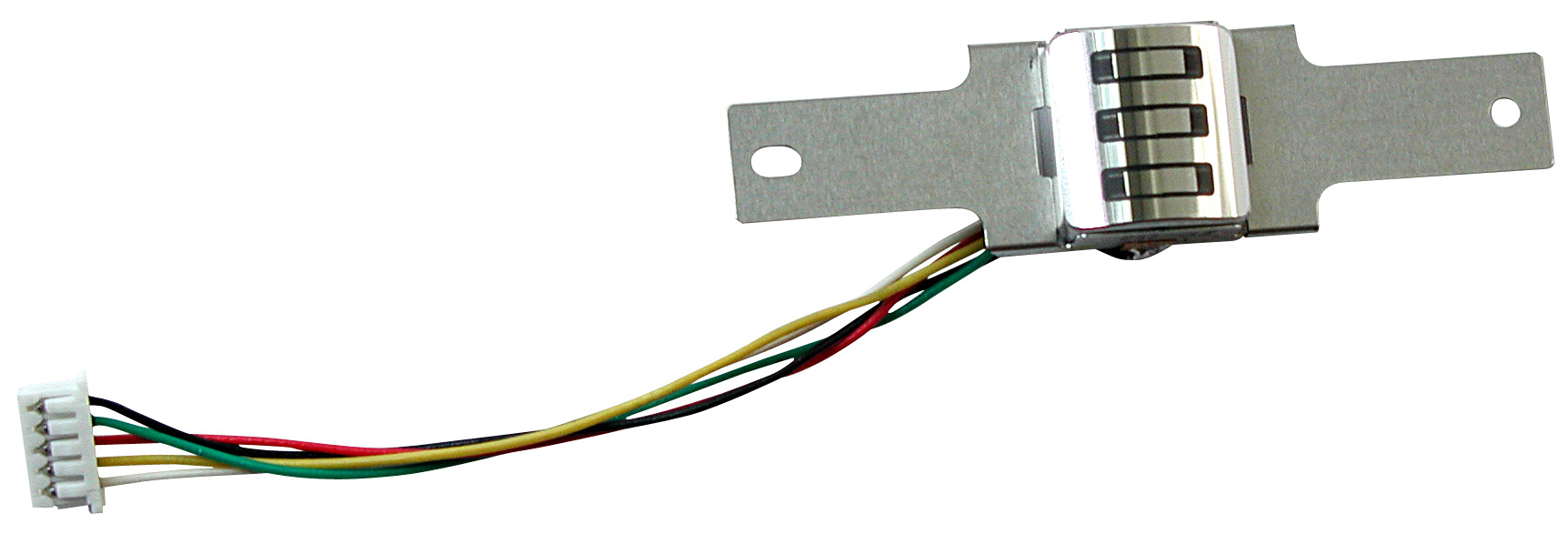

Encrypting SPI IntelliHead 加密SPI磁头 |
加密磁头 |
产品名称:
加密磁头 产品型号:
21030033
介紹:
|
规格:
-
卡片标准:ISO7810 and ISO7811; AAMVA
-
记录方法:F/2F (Two-Frequency Coherent Phase)
-
读卡速度:4 to 60 ips (10.1 to 152.4cm/s)
-
可燃性: UL 94V-0
-
电压:2.7-3.6 VDC
-
电流:4.5mA nominal when idle,12mA maximum when active. The
device is idle when no card is being swiped and no SPI commands are
being processed, otherwise it is active. The device is typically idle
most of the time.
-
通讯接口:SPI、USB
-
操作环境:
-
温度:Operating:-40℃ to 70℃
-
Storage: -40℃ to 70℃
-
湿度:Operating:10% to 90% noncondensing
-
Storage:10% to 90% noncondensing
-
高度:Operating:0-10,000ft(0-3048m)
-
Storage:0-50,000ft(0-15240m)
注意:产品规格变更不另行通知.
其他:
想了解更多讯息: www.magtek.com
进入型录:Encrypting
SPI IntelliHead |
|
